EFFECT OF SONICATION ON TECHNOLOGICAL PROPERTIES OF BEEF



Z. J. Dolatowski, J. Stadnik



Department of Meat Technology and Food Quality, Agricultural University of Lublin, ul. Skromna 8, 20 - 704 Lublin, Poland



Key Words: Ultrasound, beef, tenderness



Introduction

Meat quality is assessed from the point of view of its technological and culinary properties. One of the most important features during technological evaluation of meat is its tenderness. Meat tenderness is highly affected by post mortem changes
of myofibrills. Rigor onset followed by degradation of myofibrills structure affects water holding capacity (WHC), cooking loss and consequently its tenderness. Formation of technological properties of meat is a complicated, yet very important stage of its processing. One of the methods for modifying meat properties
is its subjection to ultrasound treatment directly after slaughter or during rigor mortis period (Dolatowski, 1999; McClements, 1995). Attempts have been made to apply ultrasound waves during meat ageing. Application of ultrasound to provoke changes
of physical and chemical properties of meat attracts the interest of research workers as a pure physical technique, providing an alternative to chemical means of processing (Jayasooriya, Bhandari, Torley & D`Arcy, 2004). Interest in ultrasound applications
is connected with the effects of its use on biological materials (Got et al., 1999; Mason et al., 1996; McClements, 1995; Pohlman et al., 1997; Twarda and Dolatowski, 2006). Muscle tissue is a special area for ultrasound propagation. Results of previous research show that ultrasound treatment has an influence on meat ageing, especially
on myofibrillar proteins (Dolatowski and Twarda, 2004; Lyng et al.,1997).

The aim of research was to investigate the influence of ultrasound treatment
on technological properties of beef during its ageing.



Materials and Methods

Investigations were carried out on young bulls (Lowland Black and White breed) slaughtered at a live weight of approximately 450 - 500 kg following standard procedure. The muscles (m. semimembranosus), free from quality defects, were excised at 24 hour post mortem from left half - carcasses of temperature 7°C. Muscle, free of external fat and connective tissue, was divided into eight blocks,
(70 mm x 70 mm x 80 mm, length, width and height, respectively) of about 400 g. Four of the parts were regarded as control samples (C). The other four were subjected to ultrasound treatment with frequency of 45 kHz (sample U). In order to carry out ultrasound treatment samples packed in polyethylene bags were placed into
an ultrasound bath (Polsonic, Warsaw, Poland) filled with cold water (4°C) and then sonicated. The low intensity ultrasonic field (2 W/cm2) was applied perpendicularly
to muscle fibers for 120 s. Meat samples were then stored at 4°C until assessed. Directly after ultrasound treatment and then daily for a total of 4 days the following characteristics were tested: acidity, water holding capacity (Wierbicki et al., 1962), lightness L* (X - Rite 8200), free calcium ions concentration by ASA method (Geesink et al., 2001) and shear force (TA - XT plus; Stable Micro Systems).

Three series of experiments and three replications of each experiment were conducted. Obtained results were subjected to statistical analysis (α=0.05).



Results and Discussion

Based on the statistical analysis of obtained results, it was found that there were
no significant differences between acidity values of both samples directly after sonication as well as after 72 and 96 hours of storage (fig. 1).

Directly after ultrasound treatment differences in water holding capacity between examined samples were not significant (fig. 2).











Fig. 1. Influence of ultrasound treatment on acidity of meat

Means followed by the same letters a - e do not differ significantly (α = 0.05)



Statistically significant decrease of water holding capacity was observed 48 hours after slaughter. After 72 hours of ageing sample U - subjected to ultrasound treatment, was having almost two times higher water holding capacity (11.13%) than the control sample (5.05%). Experiments carried out 96 hours after slaughter proved further increase of water holding capacity.

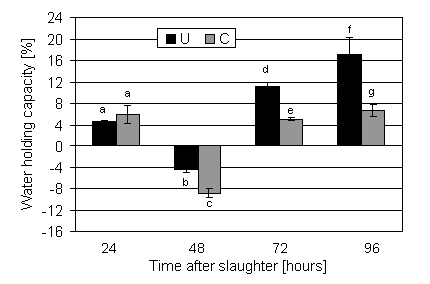

Fig. 2. Influence of ultrasound treatment on water holding capacity of meat

Means followed by the same letters a - g do not differ significantly (α = 0.05)



During the whole period of ageing examined meat samples were characterized
by similar lightness (fig. 3). Significant differences in L* values were noted only directly after ultrasound treatment. At that time meat subjected to sonication was having higher L* values than the control sample.

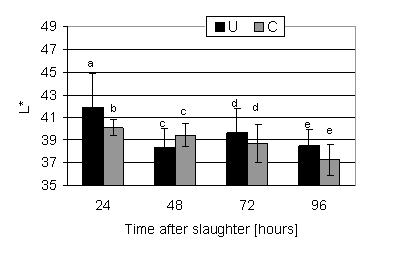

Fig. 3. Influence of ultrasound treatment on lightness of meat

Means followed by the same letters a - e do not differ significantly (α = 0.05)



The control sample was having significantly higher shear force than the U sample 48 and 72 hours after slaughter (tab. 1). The passage of time was coupled
with a decrease of this parameter for both samples.



Table 1. Influence of ultrasound treatment on shear force and free calcium ions concentration (mean ± standard error)

Sample

Parameter

Time after slaughter (hours)

24

48

72

96

C

Shear force (N)

39.60±2.87a

44.83±2.03b

36.31±4.61d

33.98±1.99f

U

40.95±3.91a

34.52±1.44c

30.06±1.10e

30.29±3.91f

C

Ca2+

(µg/g)

2.92±0.64a

3.82±0.64b

4.19±0.30c

4.61±0.93e

U

2.72±0.28a

4.15±0.67b

5.50±0.35d

8.56±0.19f

Means followed by the same letters a - f do not differ significantly (α = 0.05)



Free calcium ions concentration was increasing during the ageing period.
For U sample higher concentration of free Ca2+ was recorded at every stage
of the experiment. The differences between samples were significant 72 and 96 hours after slaughter.



Conclusions

Observations of changes in protein’s structures as well as previous research (Dolatowski, 1999) suggest that sonication accelerates the formation of rigor mortis state of tissue. Most authors (Bertram, Schäfer, Rosenvold & Andersen, 2004; Offer & Cousins, 1992; Schäfer et al., 2002) claim that WHC changes are coupled
with myofibrillar structure changes post mortem and thus meat tenderness is connected with differences in water distribution during the conversion of muscle to meat. Proteolysis of key myofibrillar and associated proteins appears to be the cause of meat tenderization (Koohmaraie, 1996). Two protease systems are known: lysosomal cysteine proteinases (cathepsins) and calcium - activated proteinases, calpains (Pospiech, Grześ, Łyczyński, Borzuta, Szalata & Mikołajczak, 2003). According
to Koohmaraie (1996) calpains are the only proteases that are directly involved
in the events leading to meat tenderization. Some authors claim (Takahashi, 1996; Tyszkiewicz, 1969) that structural changes are caused by non - enzymatic degradation of proteins in muscle cells. According to Takahashi’s theory (1996) further rise
of the sarcoplasmic calcium ions concentration lead to weakening structures
of myofibrils, desmin intermediate filaments and probably endomysium and perimysium. In present study probably as a result of ultrasound treatment during rigor mortis period an acceleration of aging processes occurred. High values of water holding capacity obtained for sonicated sample support that hypothesis. Statistical analysis of obtained results showed no significant influence of sonication on its acidity during ageing. Differentiated technological properties of examined samples may resulted from influence of ultrasound on protein structures of meat.

Ultrasound treatment did not influence lightness, a very important meat quality parameter. Judging by the results of shear force measurements, sonication process has been shown to be effective at improving meat tenderness. As a result of ultrasound treatment an increase of free calcium ions concentration occurred. Obtained results pointed out that sonication may be an effective method of formation of technological properties of beef during ageing.



References

1.      Bertram, H. C., Schäfer, A., Rosenvold, K., & Andersen, H. J. (2004). Physical changes of significance for early post mortem water distribution in porcine
m. longissimus. Meat Science, 66, 915 - 924.

2.      Dolatowski, Z J. (1999). Wpływ obróbki ultradźwiękami o niskiej częstotliwości na strukturę i cechy jakościowe mięsa (Influence of ultrasound treatment of low frequency on structure and quality features of meat). Rozprawy naukowe AR
w Lublinie, 221 (in Polish).

3.      Dolatowski, Z. J. and Twarda, J. (2004). Einfluss von Ultraschall auf das Wasserbindungsvermögen von Rindfleisch. Fleischwirtschaft, 12, 95 - 99.

4.      Geesink, G. H., Taylor, R. G., Bekhit A. E. D. and Bickerstaffe R. (2001): Evidence against the non - enzymatic calcium theory of tenderization. Meat Science, 59, 417 - 422.

5.      Got, F., Culioli, J., Berge, P., Vignon, X., Astruc, T., Quideau, J. M. and Lethiecq M. (1999). Effects of high - intensity high - frequency ultrasound on ageing rate, ultrastructure and some physico - chemical properties of beef. Meat Science, 51, 35 - 42.

6.      Jayasooriya, S. D., Bhandari, B. R., Torley, P., & D’Arcy B. R. (2004). Effect
of high power ultrasound waves on properties of meat: A review. International Journal of Food Properties, 7(2), 301 - 319.

7.      Koohmaraie, M. (1996). Biochemical factors regulating the toughening
and tenderization processes of meat. Meat Science, 43, S193 - S201.

8.      Lyng, J. G., Allen, P. and McKenna, B. M. (1997). The influence of high intensity ultrasound baths on aspects of beef tenderness. Journal of Muscle Foods, 8,
237 - 249.

9.      Mason, T. J., Paniwnyk, L. and Lorimer, J. P. (1996). The uses of ultrasound
in food technology. Ultrasonics Sonochemistry, 3, S253 - S260.

10. McClements, D. J. (1995). Advances in the application of ultrasound in food analysis and processing. Trends in Food Science and Technology, 6, 293 - 299.

11. Møller, A.J., Vestergaard, T. and Wismer - Pedersen, J. (1973). Myofibril fragmentation in bovine longissimus dorsi as an index of tenderness. Journal
of Food Science, 38, 824 - 825.

12. Offer, G., & Cousins, T. (1992). The mechanism of drip production: Formation
of two compartments of extracellular space in muscle post mortem. Journal of the Science of Food and Agriculture, 58, 107 - 116.

13. Pohlman, F. W., Dikeman, M. E. and Zayas, J. F. (1997). The effect
of low - intensity ultrasound treatment on shear properties, color stability and shelf - life of vacuum - packaged beef semitendinosus and biceps femoris muscles. Meat Science, 3, 329 - 337.

14. Pospiech, E., Grześ, B., Łyczyński, A., Borzuta, K., Szalata, M., & Mikołajczak, B. (2003). Muscle proteins and their changes in the process of meat tenderization. Animal Science Papers and Reports, 21 supplement 1, 133 - 151.

15. Schäfer, A., Rosenvold, K., Purslow, P. P., Andersen, H. J., & Henckel, P. (2002). Physiological and structural events post mortem of importance for drip loss in pork. Meat Science, 61, 355 - 366.

16. Takahashi, K. (1996). Structural weakening of skeletal muscle tissue during post mortem ageing of meat: the non - enzymatic mechanism of meat tenderization. Meat Science, 43, S67 - S80.

17. Twarda, J. and Dolatowski, Z. J. (2006). The effect of sonication on the colour
and WHC of normal and PSE pork. Animal Science, supplement, 184 - 185.

18. Tyszkiewicz, I. (1969). Mechanizm nieproteolitycznego kruszenia mięsa wołowego (Mechanism of non - proteolytic tenderization of beef). Roczniki Instytutu Przemysłu Mięsnego i Tłuszczowego, 6 (1), 75 - 93 (in Polish).

19. Wierbicki, E., Tiede, M.G. and Burrell, R.C. (1962). Die Bestimmung der Fleischquellung als Methode zur Untersuchung der Wasserbindungskapazitat von Muskelproteinen mit geringen salthaltevermogen. Fleischwirtschaft, 10, 948 - 951.
