Candidate of Science N.L. Batseva, student A.P. Shubenkina

Tomsk Polytechnic University, Russia

The flux transfer in advanced

Tomsk interconnected power network



In Tomsk power system (PS) consumers are provided electrical energy by 220kV double-circuit overhead line which begins on Nizhnevartovsk Power Plant (PP) (Tyumen PS), passes via seven substations of Tomsk PS: Sovietsko-Sosninskaya – Chapaevka – Raskino – Vertikos – Parabel – Chazhemto – Volodino and ends on Tomskaya substation (further Nizhnevartovsk PP – Tomskaya). The length of this line is 800 km, and nowadays it is operating as no-load line between substations Vertikos and Parabel (figure 1).

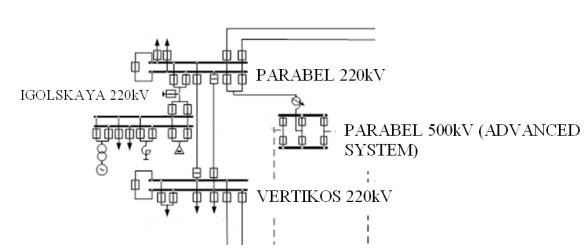

Figure 1 – The fragment of Tomsk interconnected power network with no-load line

This fact leads to the power supply deterioration of oil and gas industry consumers (single-way feed from Tyumen PS); unacceptable boosting or reduction of the voltage value on the long-distance substation busbars.

Unfortunately it is impossible to improve the power supply reliability by using Vertikos – Parabel line as the double-way feed line because of current overload in the main line Nizhnevartovsk PP (Tyumen PS) – Sovietsko-Sosninskaya under conditions of emergency or maintenance on one circuit the last (table 1).



Table 1 – Results of regime calculation under condition when Vertikos – Parabel line is switched on two ends

Name of overhead line



Wire mark

Admissible continuous current I, À (outdoor)



State of operation



Current, A

Nizhnevartovsk PP – Sovietsko-Sosninskaya





ÀS 240/32





610

Two circuits are in service



346

One circuit is switched off



611

One of ways to redress situation is development of interconnected network by means of place into service 500kV single-circuit overhead line Nizhnevartovsk PP – Tomskaya till 2016 [1]. In practice, it corresponds the case when 220kV overhead line will operate with 500 kV overhead line in parallel.

According to the results (table 2), under the condition of inherent power flowing via 220 kV and 500 kV overhead lines, the desired effect of improving power transmission capacity is not observed: 500kV overhead line is underused but 220kV overhead line operates under power transmission capacity limit, which leads to the magnifying of total power and energy losses.

Table 2 – Power flows under the condition of inherent power flowing

Name of overhead line

Overhead line voltage, kV

Power flow

P, MW

Q, Mvar

Sovietsko-Sosninskaya – Chapaevka



220



232



128

Sovietsko-Sosninskaya – Parabel



500



50



185

It is possible to redistribute power flows between 220kV and 500kV overhead lines correctly by using of the phase shifter device (PSD) installed on Sovietsko-Sosninskaya substation. Technical characteristics of PSD are presented in table 3.



Table 3 – Technical characteristics of PSD

Name of parameter

Parameter value

Capacity, MWA

226

Permissible current in OL, A

787

Phase shift (angle) of voltage, electrical degree



±40

Number of ratio steps

±15

Ratio step, electrical degree

2,67

Time of phase shift (angle) changing (no more), s



0,02

Generally, the PSD consists of two transformers: regulated T1 and series T2, which produces the additional voltage vector, directed to the voltage vector at the beginning of the overhead line perpendicularly and forms the phase shift relatively to the main voltage (figure 2).

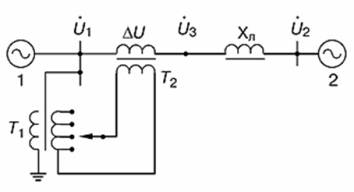

Figure 2 – The scheme of PSD

Under varying of voltage on series winding by regulated transformer, the vector rotation of total voltage at the beginning of an overhead line is accomplished. Consequently, under changing of a power flow, transmitted through the line, controlling a voltage phase at the beginning and in the end of the line is possible [2].

The regime calculation of interconnected network with PSD installed on Sovietsko-Sosninskaya substation has been done by means of RastrKZ software. Phase shifter device is modeled by including CT ratio: ÊÒ/r, ÊÒ/i – the real and imaginary components of CT ratio (figure 3).

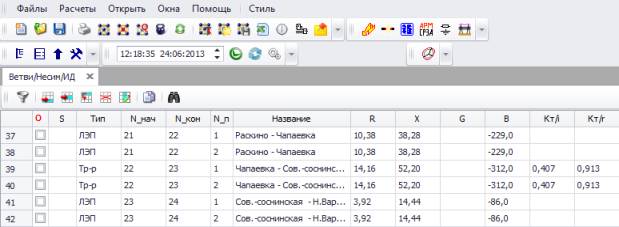

Figure 3 – Modeling of PSD in RastrKZ software

CT ratio is determined by formula (1):

                               (1)

where δ – is the shift angle between vectors of voltage, electrical degree.

Originally, the resistance of PSD branch is assumed to be zero, that is corresponded the CT ratio equals 0.99 ± j0.046.

Under changing the value of CT ratio, power flows are forcibly redistributed from 220 kV to 500 kV to optimal values (table 4).

Table 4 – The flux transfer by means of PSD

Phase shift angle between voltage vectors

Total power losses, MVA

Power flows, MVA

Sovietsko-Sosninskaya–Chapaevka (220 kV)

Nizhnevartovsk PP–Sovietsko-Sosninskaya (220 kV) (by two circuits)

Sovietsko-Sosninskaya–Parabel

(500 kV)

0 (phase shifter device does not operate)

54,1+j635

98-j14

230-j128

-50+j136

+2,67

53,5+j633

78-j4

220-j122

-60+j139

+5,34

53,3+j632

56+j0,1

208-j118

-71+j140

+10,68

54+j635

16+j14

188-j106

-92+j141

+16,02

56,5+j646

-24+j28

168-j92

-112+j141

+21,36

60,6+j664

-62+j44

76-j78

-132+j140

+24,03

63,4+j676

-80+j52

142-j62

-142+j139

+32,04

74+j722

-132+j80

120-j22

-170+j136

+37,38

82,9+j762

-164+j58

108+j10

-187+j133

+40,00

87,7+j782

-178+j104

104+j26

-195+j131

Based on these results, it is concluded that the PSD optimal switching angle is approximately 11 electrical degrees. Under this angle 220kV power lines will detrain but 500kV power line will load while total power losses will identical with the case when PSD does not operate.

References

1. About scheme and program of Tomsk power system future development for the period 2013-2017 [Official site of Tomsk region Administration]. URL: docs.pravo.ru/document/view/26481664/26384921 (date of circulation 17.08.2013).

2. Stelmakov V.N. Phase shifter device with thyristor adjustment // Electricity.-2010.-¹8.-P. 20-23.
