Constructions for reed relay protection switch-up adjustment on the
110-220 kV wireways.
Zhantlessova A.B.,
Kletsel M.J., Polischuk V.I.
Reed relay based devices, a magnetically operated contacts ( MOC ) [ 1-4
] without current transformer, can provide a way to save a resources such steel
and copper on the protective relaying (
PR ) of the electric power systems. This
report is related to reed relay mounting constructions and adjustments on the
elements of the 110-220 kV electric power system with horizontal
or triangular configuration of the
wireways
The construction for
110 kV triphase symmetrical wireways (Fig. 1a) allow us to control the protection
pickup current [5] by changing the
position of reed relay according to the conductor over the bar 1 using the bolts 2 , as well as inside the case using the handle (Fig. 1)
à á

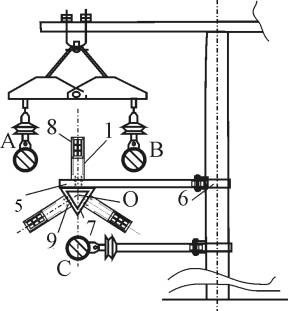

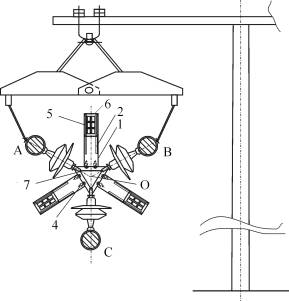

Figure 1- Reed relays mounted on the
triphase symmetrical support: a) 110 kV wireway; b) 35 kV wireway
The clip 6 (Fig. 1a) holds the plate 5 which fixing an equilateral triangle shaped support 7 and base with reed relays by the mounting bolts 9. On the fig. 3 it can be seen that the position
of the reed relay inside the casing can be fixed by the stud 11 and the casing 16
is fixed on the plate 9 by the tie-down lug 10. The platform 14 is settled in the required position using the
screwed shank 13 with handle 12. The quantitative assessment of the angle
variation is displayed in aperture 16 on the upper side of the casing 16.
Demonstrated construction allows the reed relay
to be moved in horizontal and vertical planes. At the same time the angle
between horizontal plane and axis of elongation of reed relay can be settled
without removing of the case cover, so device maintenance is simplified. The
protection pickup current can be
selected as shown in [5].
A construction [6] for the 6-35 kV electric power installations
includes bars 1 with holes 2
(Fig. 1 b), bolts with thumb-nuts 3, attaching bolts 4, plates with reed relays
mounted 5 and split casings 6 with the reed relay position changing devise
similar to the casing for 35- 110 kV construction (Fig. 2).
The position
of the plate 5 can be changed along the scaled rod 1 with a scale. The rods are attached to the sides of
an equilateral triangle shaped construction by two mounting bolts 4. Moving the reed relay on the plate to
the left or to the right according to the conductor can be done by using the
adapter (Fig. 2). The position of reed relays on the
remaining plates can be regulated similarly.
Figure 2 – The adapter
The design for 220 kV three-phase high-voltage power line with asymmetrical conductors (Fig. 3), similar to the previous constructions contains plate 1(6) attached to the tower by two clips 2, or two clips and wire rope 3. The reed relay position adapter 4 (Fig. 3) is mounted on the plate by the clamp locks 5(7) . This allows us to arrange the reed relay between the A and C phases, as same as between the B and C phases.
The protective relaying construction of 220 kV three-phase high-voltage power lines with asymmetrical conductors and single-circuit suspension towers is rigidly fixed on the tower, which reduces errors in determination of protection pick-up current.
In accordance with the law of Bio - Savart - Laplace, the field density (FD) , created by the phase currents , è , and acting at the point M along the axis of elongation of the reed relay (RR) [5] is :
(1)
where ( and ) is a FD at the point M created by the current ( and ); ( and ) is the angle between the axis of elongation of the RR and ( and ); and is the magnetic permeability of air.
To the RR-1 acted as a filter of zero-sequence current , it must respond to . As seen from (1), it is possible if:
(2)
When substituting positive-sequence current , , in (1) instead of the currents , , respectively, under conditions (2), we find that field
density created by them is
equal to zero, that is, these currents do not affect the RR-1. Similarly, it is
correct for the negative sequence currents as well. By substituting in (1)
zero-sequence currents , , instead of , , , we get . Hence, there is only magnetic field produced by
currents is affecting the RR-1, and the problem reduces to
determining the coordinates of the reed relay, in which condition (2) is
satisfied.

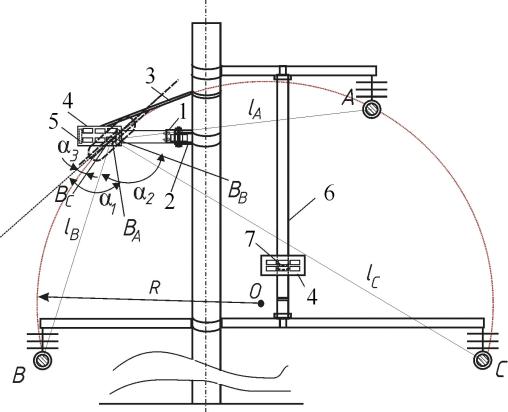

Figure 4 – design for 220 kV high-voltage
power line
In [2] it is shown that
position of the reed relay, performing the duty of the filter of zero-sequence current, must be
on a circle of radius R, circumscribed around a triangle connecting the points
A, B, C, and the axis of elongation of the reed relay should coincide with the
tangent of the circle.
Conclusions: Four formations of reed relay protection switch-up adjustment are developed for
the 110-220 kV electric power installations with a horizontal and a triangular
configuration of the wireways. Common to all is a reed relay position adapter,
disposed inside the casing, and a distinguishing feature are the
different ways of mounting the plates with platforms
for the reed relays. .
